3.5 Bar MAP Upgrade - Value Input

Post by phonk »

Where do I input the upgraded MAP sensor values?
Am I doing it correctly? My logging is way off.


phonk
Posts: 9
Joined: June 14th, 2023, 4:17 pm

Re: 3.5 Bar MAP Upgrade - Value Input

Post by phonk »

Think I figured it out.

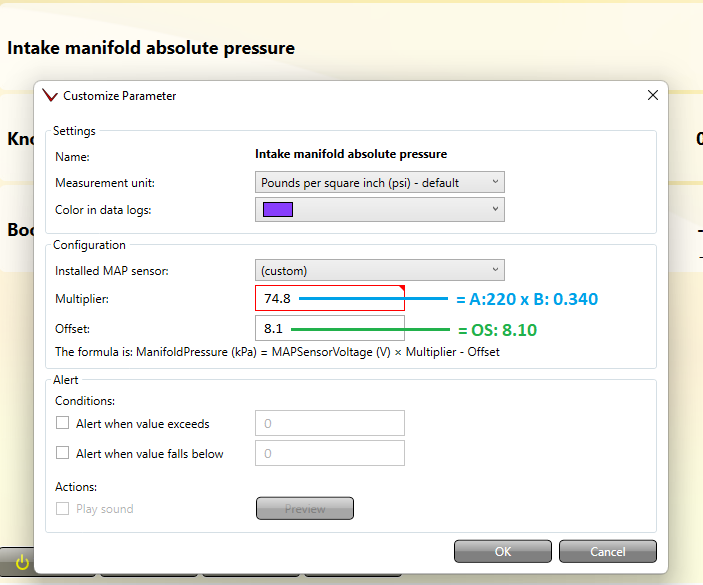

Had to click on the Customize option on the Intake manifold absolute pressure Parameter in the Dashboard tab.
The drop down for MAP sensor has an old CorkSport 3.5 Bar sensor.
Pretty sure I inputted the correct values now. Logging looks good and matches the boost gauge.

User avatar
Ugnius @ VersaTune
Lead developer
Posts: 636
Joined: March 19th, 2010, 11:57 am

Re: 3.5 Bar MAP Upgrade - Value Input

Post by Ugnius @ VersaTune »

Yes, that is correct. Thank you for sharing.
