Vgate Vlinker FS cable not detected

Posted: December 1st, 2024, 9:52 am
by rickypr
I am new to Versatune. I just received the vLinker FS cable from Fab9 and when I connect the cable it appears in the device manager as com3 with VID 0403 and PID 6015. The FTDI driver version I have is 2.12.36.4. Versatune version I am using is 24.2.1.0 and it does not show the USB cable in the "Choose vehicle interface" list. I haven't found information on how to work with this particular cable.

Any ideas? Thank you!

Re: Vgate Vlinker FS cable not detected

Posted: December 1st, 2024, 12:26 pm
by Ugnius @ VersaTune
Please download FT Prog application: https://ftdichip.com/wp-content/uploads ... taller.zip
Run it and click Devices - Scan and Parse.
If the device is listed in the Device Tree, please attach a screenshot.

Re: Vgate Vlinker FS cable not detected

Posted: December 2nd, 2024, 8:56 am
by rickypr

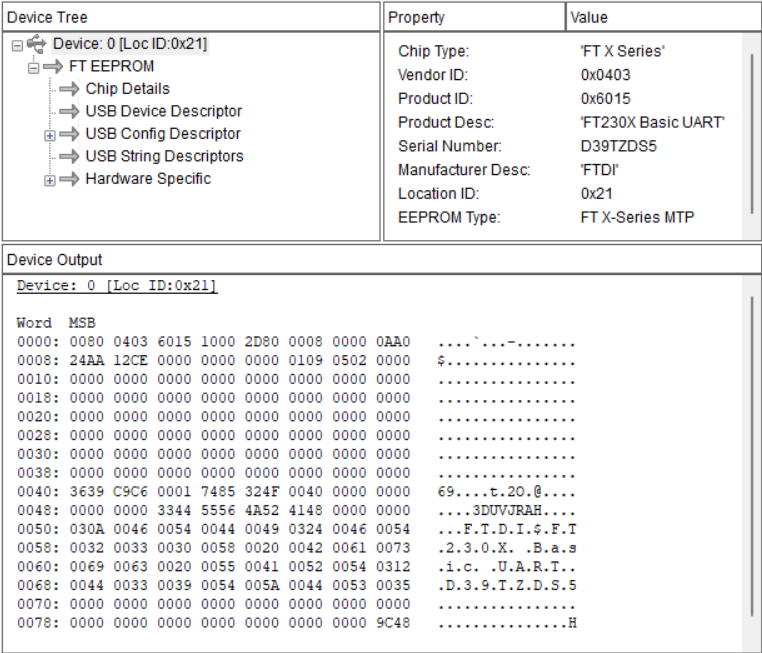

Thanks for helping me. The device info looks like this:

Re: Vgate Vlinker FS cable not detected

Posted: December 4th, 2024, 3:21 pm
by Ugnius @ VersaTune

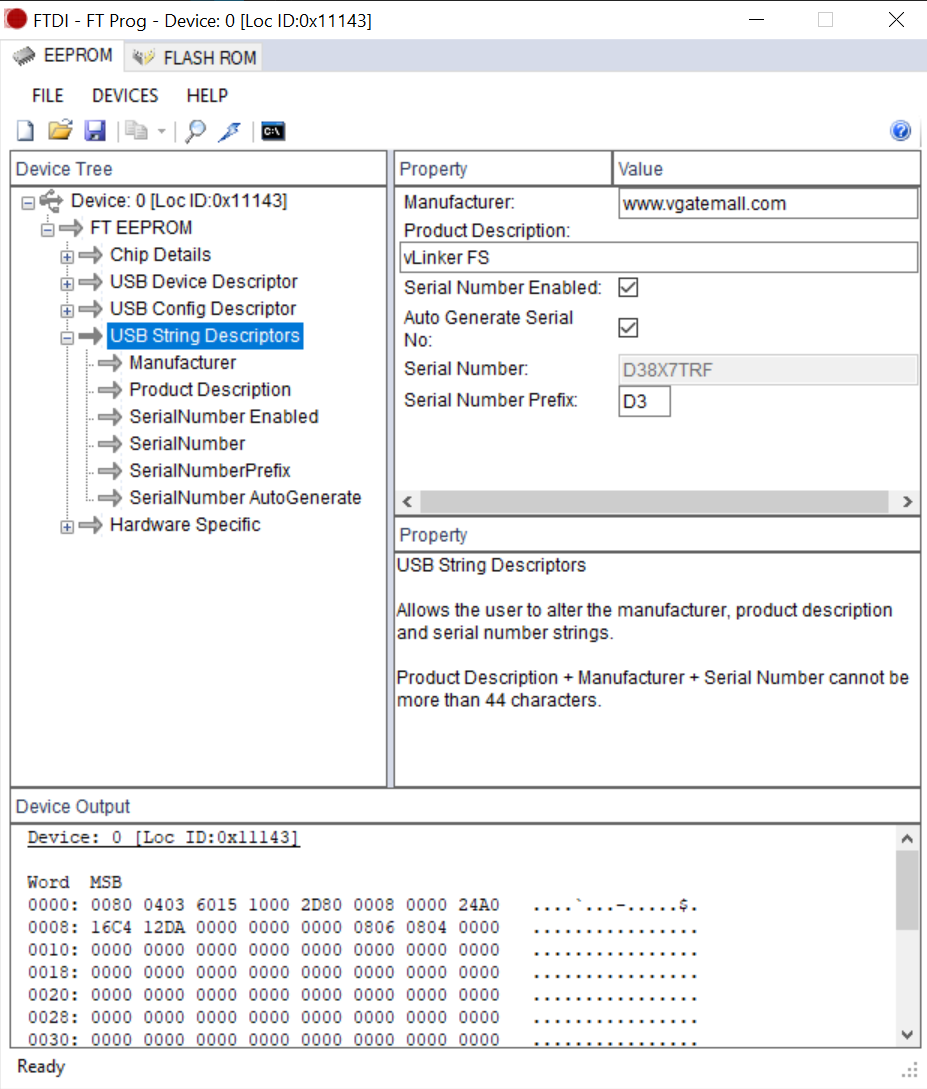

Your cable has not been properly programmed from the factory.
Here is what you can do to fix that:
1. Connect the cable to the USB port
2. Run FT_PROG and click F5
3. In the tree of devices expand FT EEPROM -> USB String Descriptors
4. Enter "www.vgatemall.com" as Manufacturer and "vLinker FS" as Product Description. Leave everything else unchanged.
5. Click "Program Devices" (flash icon) in the toolbar.
6. Click "Program"
Screenshot 2024-12-04 211806.png
Screenshot 2024-12-04 211806.png (228.11 KiB) Viewed 50826 times

Re: Vgate Vlinker FS cable not detected

Posted: December 13th, 2024, 11:25 am
by rickypr
Thank you!

Re: Vgate Vlinker FS cable not detected

Posted: March 30th, 2025, 5:12 pm
by dmpinkevitch
I have the drivers and identified my car in versa but wont allow install of versatuner as it throws a "Vehicle response has a non-matching service ID"?? its the rx8 and same vin as identified. Also throws "Not maching infotype"

Re: Vgate Vlinker FS cable not detected

Posted: March 31st, 2025, 3:48 am
by Ugnius @ VersaTune
dmpinkevitch wrote: March 30th, 2025, 5:12 pm I have the drivers and identified my car in versa but wont allow install of versatuner as it throws a "Vehicle response has a non-matching service ID"?? its the rx8 and same vin as identified. Also throws "Not maching infotype"
This error is usually caused by aftermarket devices connected to the CAN bus of the vehicle. Typically those can be gauges, loggers, alarms, modules that control the radio, sunroof or DRL, etc. You will need to disconnect them while flashing or logging with VersaTuner.

Re: Vgate Vlinker FS cable not detected

Posted: March 31st, 2025, 6:33 pm
by dmpinkevitch
Ugnius @ VersaTune wrote: March 31st, 2025, 3:48 am
dmpinkevitch wrote: March 30th, 2025, 5:12 pm I have the drivers and identified my car in versa but wont allow install of versatuner as it throws a "Vehicle response has a non-matching service ID"?? its the rx8 and same vin as identified. Also throws "Not maching infotype"
This error is usually caused by aftermarket devices connected to the CAN bus of the vehicle. Typically those can be gauges, loggers, alarms, modules that control the radio, sunroof or DRL, etc. You will need to disconnect them while flashing or logging with VersaTuner.
What should I disconnect? no aftermarket gauges sunroof or radio, id have to look around for loggers or alarms i havent seen.

Re: Vgate Vlinker FS cable not detected

Posted: April 1st, 2025, 2:42 pm
by Ugnius @ VersaTune
dmpinkevitch wrote: March 31st, 2025, 6:33 pm
Ugnius @ VersaTune wrote: March 31st, 2025, 3:48 am
dmpinkevitch wrote: March 30th, 2025, 5:12 pm I have the drivers and identified my car in versa but wont allow install of versatuner as it throws a "Vehicle response has a non-matching service ID"?? its the rx8 and same vin as identified. Also throws "Not maching infotype"
This error is usually caused by aftermarket devices connected to the CAN bus of the vehicle. Typically those can be gauges, loggers, alarms, modules that control the radio, sunroof or DRL, etc. You will need to disconnect them while flashing or logging with VersaTuner.
What should I disconnect? no aftermarket gauges sunroof or radio, id have to look around for loggers or alarms i havent seen.
Please email support at [email protected]
